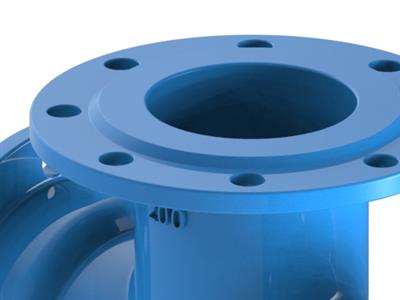

سه راه دوسر بولتد ناف فلنج
ویژگی ها:
- جنس از چدن نشکن
- بسته بندی بر روی پالت های چوبی و فلزی
- ابعاد و اندازه مطابق با استاندارد ملی INSO3732
- سوراخکاری فلنج ها مطابق با استاندارد DIN EN 1092-2
- پوشش از نوع رنگ الکترواستاتیک پودری با رال 5005
- تست شده در فشار مجاز آزمون محل نصب (PEA)
|
DN
|
dn
|
e1
|
e2
|
Lu
|
l
|
|
80
|
80
|
8.1
|
8.1
|
170
|
165
|
|
100
|
80
|
8.4
|
8.1
|
170
|
175
|
|
100
|
8.4
|
8.4
|
190
|
180
|
|
150
|
80
|
9.1
|
8.1
|
170
|
205
|
|
100
|
9.1
|
8.4
|
195
|
210
|
|
150
|
9.1
|
9.1
|
255
|
220
|
|
200
|
80
|
9.8
|
8.1
|
175
|
235
|
|
100
|
9.8
|
8.4
|
200
|
240
|
|
150
|
9.8
|
9.1
|
255
|
250
|
|
200
|
9.8
|
9.8
|
315
|
260
|
|
250
|
80
|
10.5
|
8.1
|
180
|
270
|
|
100
|
10.5
|
8.4
|
200
|
270
|
|
150
|
10.5
|
9.1
|
260
|
290
|
|
200
|
10.5
|
9.8
|
315
|
290
|
|
250
|
10.5
|
10.5
|
375
|
300
|
|
300
|
80
|
11.2
|
8.1
|
180
|
295
|
|
100
|
11.2
|
8.4
|
205
|
300
|
|
150
|
11.2
|
9.1
|
260
|
310
|
|
200
|
11.2
|
9.8
|
320
|
320
|
|
250
|
11.2
|
10.5
|
380
|
330
|
|
300
|
11.2
|
11.2
|
435
|
340
|
|
350
|
80
|
11.9
|
8.1
|
185
|
325
|
|
100
|
11.9
|
8.4
|
205
|
330
|
|
150
|
11.9
|
9.1
|
270
|
340
|
|
200
|
11.9
|
9.8
|
325
|
350
|
|
250
|
11.9
|
10.5
|
385
|
360
|
|
300
|
11.9
|
11.2
|
495
|
370
|
|
350
|
11.9
|
11.9
|
495
|
380
|
|
400
|
80
|
12.6
|
8.1
|
185
|
355
|
|
100
|
12.6
|
8.4
|
210
|
360
|
|
150
|
12.6
|
9.1
|
270
|
380
|
|
200
|
12.6
|
9.8
|
325
|
380
|
|
250
|
12.6
|
10.5
|
385
|
390
|
|
300
|
12.6
|
11.2
|
440
|
400
|
|
350
|
12.6
|
11.9
|
560
|
410
|
|
DN
|
dn
|
e1
|
e2
|
Lu
|
l
|
|
400
|
400
|
12.6
|
12.6
|
560
|
420
|
|
500
|
80
|
14
|
8.1
|
215
|
420
|
|
100
|
14
|
8.4
|
215
|
420
|
|
150
|
14
|
9.1
|
330
|
430
|
|
200
|
14
|
9.8
|
330
|
440
|
|
250
|
14
|
10.5
|
450
|
450
|
|
300
|
14
|
11.2
|
450
|
460
|
|
350
|
14
|
11.9
|
565
|
470
|
|
400
|
14
|
12.6
|
565
|
480
|
|
500
|
14
|
14
|
680
|
500
|
|
600
|
80
|
15.4
|
8.1
|
340
|
480
|
|
100
|
15.4
|
8.4
|
340
|
480
|
|
150
|
15.4
|
9.1
|
340
|
490
|
|
200
|
15.4
|
9.8
|
340
|
500
|
|
250
|
15.4
|
10.5
|
570
|
510
|
|
300
|
15.4
|
11.2
|
570
|
520
|
|
350
|
15.4
|
11.9
|
570
|
530
|
|
400
|
15.4
|
12.6
|
570
|
540
|
|
500
|
15.4
|
14
|
800
|
560
|
|
600
|
15.4
|
15.4
|
800
|
580
|
|
700
|
80
|
16.8
|
8.1
|
345
|
500
|
|
100
|
16.8
|
8.4
|
345
|
510
|
|
150
|
16.8
|
9.1
|
345
|
520
|
|
200
|
16.8
|
9.8
|
345
|
525
|
|
250
|
16.8
|
10.5
|
575
|
530
|
|
300
|
16.8
|
11.2
|
575
|
540
|
|
350
|
16.8
|
11.9
|
575
|
550
|
|
400
|
16.8
|
12.6
|
575
|
555
|
|
500
|
16.8
|
14
|
925
|
570
|
|
600
|
16.8
|
15.4
|
925
|
585
|
|
700
|
16.8
|
16.8
|
925
|
600
|
|
800
|
80
|
18.2
|
8.1
|
350
|
560
|
|
100
|
18.2
|
8.4
|
350
|
570
|
|
150
|
18.2
|
9.1
|
350
|
585
|
|
200
|
18.2
|
9.8
|
350
|
585
|
|
DN
|
dn
|
e1
|
e2
|
Lu
|
l
|
|
800
|
250
|
18.2
|
10.5
|
580
|
590
|
|
300
|
18.2
|
11.2
|
580
|
600
|
|
350
|
18.2
|
11.9
|
580
|
610
|
|
400
|
18.2
|
12.6
|
580
|
615
|
|
500
|
18.2
|
14
|
1045
|
630
|
|
600
|
18.2
|
15.4
|
1045
|
645
|
|
700
|
18.2
|
16.8
|
1045
|
660
|
|
800
|
18.2
|
18.2
|
1045
|
675
|
|
900
|
80
|
19.6
|
8.1
|
355
|
630
|
|
100
|
19.6
|
8.4
|
355
|
630
|
|
150
|
19.6
|
9.1
|
355
|
645
|
|
200
|
19.6
|
9.8
|
355
|
645
|
|
250
|
19.6
|
10.5
|
590
|
650
|
|
300
|
19.6
|
11.2
|
590
|
660
|
|
350
|
19.6
|
11.9
|
590
|
670
|
|
400
|
19.6
|
12.6
|
590
|
675
|
|
500
|
19.6
|
14
|
1170
|
690
|
|
600
|
19.6
|
15.4
|
1170
|
705
|
|
700
|
19.6
|
16.8
|
1170
|
725
|
|
800
|
19.6
|
18.2
|
1170
|
735
|
|
900
|
19.6
|
19.6
|
1170
|
750
|
|
1000
|
80
|
21
|
8.1
|
360
|
690
|
|
100
|
21
|
8.4
|
360
|
690
|
|
150
|
21
|
9.1
|
360
|
705
|
|
200
|
21
|
9.8
|
360
|
705
|
|
250
|
21
|
10.5
|
595
|
710
|
|
300
|
21
|
11.2
|
595
|
720
|
|
350
|
21
|
11.9
|
595
|
730
|
|
400
|
21
|
12.6
|
595
|
735
|
|
500
|
21
|
14
|
1290
|
750
|
|
600
|
21
|
15.4
|
1290
|
765
|
|
700
|
21
|
16.8
|
1290
|
780
|
|
800
|
21
|
18.2
|
1290
|
795
|
|
900
|
21
|
19.6
|
1290
|
810
|
|
1000
|
21
|
21
|
1290
|
825
|
